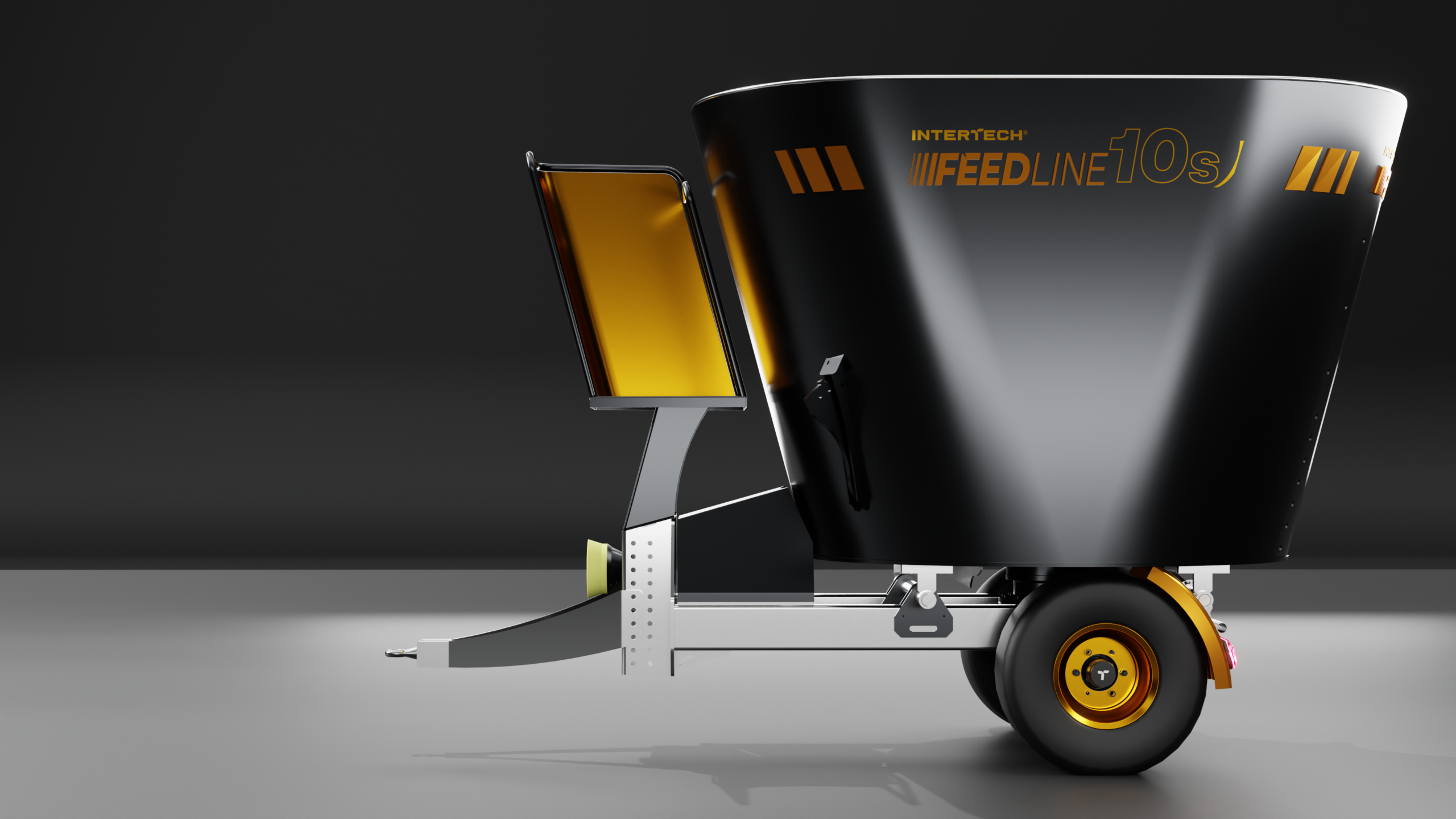

Single-auger feed mixer wagon S series

The INTERTECH FEED Line S series feed mixer wagon is a compact, single-auger TMR feed mixer wagon designed for farms that need precise feed mixing and reliable operation in all conditions. It is a solution for cattle breeders who want to quickly prepare a homogeneous feed ration, maintain the fibre structure and efficiently distribute feed even in older barns, low buildings and narrow passages.

The S series includes models with capacities from 6 to 14 m³, allowing the machine to be matched to herd size, feeding organisation and the available tractor power. Its compact design, single axle and total width from 2 m make it possible to adapt the feed mixer wagon to your needs almost like a tailor-made suit.

At the heart of the machine is a vertical auger with a refined helix geometry, supplied as standard with 20 mm thickness, responsible for fast and even mixing of TMR ration components. The mixing system helps reduce dead zones in the hopper, supports smooth feed flow and helps maintain the correct fibre structure. In practice, this means a homogeneous ration, less feed sorting by animals and better feeding control within the herd. Perfect gear ratios combined with auger geometry guarantee effective mixing of every type of feed.

The INTERTECH FEED Line S series feed mixer wagon has been designed for everyday work in demanding farm conditions. The construction is prepared for working with silage and feed components that require resistance, stability and precise workmanship from the machine.

As standard, the S series offers tractor control, a 1.18 m discharge window, a 1.00 m side window, PTO shaft, platform with ladder, 9 cutting knives, weighing system and app-based readout. Optional equipment is also available, including a two-speed gearbox, additional star knives and PVC discharge belts, allowing the machine to be configured for a specific barn and feed distribution method.

The INTERTECH FEED Line S series is a good choice for farms keeping approximately 25 to 80 cows, assuming one mixing cycle per day. It is a cattle feed mixer wagon for those who need a solid TMR machine for everyday work, but do not want to overpay for dimensions they will not use. It is designed to be manoeuvrable, precise and straightforward — exactly as things should be in a smart farm.

Key advantages of the S series

• Compact dimensions – easy operation in older buildings, low barns and narrow passages.
• Capacity from 6 to 14 m³ – the model can be matched to the size of the farm.
• One vertical auger – efficient mixing of the TMR ration throughout the entire hopper volume.
• Low power requirement – operation from 35 HP, depending on the model.
• S355 structural steel – durability and resistance in everyday operation.
• Tractor control as standard – convenient operation of all basic functions.
• Low-profile versions – a solution for farms with limited entrance height.
• Optional equipment available – weighing system, app, PVC discharge belts and additional knives.

Who is the S series feed mixer wagon designed for?

The S series has been designed for farms that need a manoeuvrable and durable feed mixer wagon for preparing a homogeneous TMR ration. It is particularly suitable for older-type barns, buildings with limited height, farms with narrow passages and breeders using low- and medium-power tractors.

It is a sensible choice for farmers who want to improve feeding organisation, reduce feed losses and increase ration repeatability without investing in an oversized machine. The S series delivers exactly what is expected from a compact feed mixer wagon: solid construction, simple operation and effective mixing.
