DISC HARROW
A universal machine combined with a grain seeder creates a cultivation and sowing combination. Depending on the individual configuration, it is the basis for preparing the seedbed for a specific crop. The main soil and seasonal treatments include spring and autumn stubble cultivation and grinding of crop residues in both wet and lumpy soils.
90-150 KM
2,7-4 m
14 cm
| Model | IT 2.7 | IT 3.0 | IT 4.0 |
|---|---|---|---|
| Machine no. | BAT01 | BAT02 | BAT03 |
| Width (m) | 2,7 | 3,0 | 4,0 |
| Number of discs (pcs) | 22 | 24 | 32 |
| Disc spacing between rows (cm) | 70 | 70 | 70 |
| Rubber shock absorber with memory (pcs) | 88 | 96 | 128 |
| Effective output (ha/h) | 1,8 – 2,6 | 2,0 – 3,0 | 2,8 – 4,2 |
| Working depth max (cm) | 14 | 14 | 14 |
| Tractor power (hp) | 90 – 110 | 100 – 120 | 120 – 150 |
| Weight (kg) | 1050 | 1300 | 1570 |
| Equipment | |||
| Disc (mm) Ø 560 type p Polish | standard blue | standard blue | standard blue |
| Maintenance-free hubs with cassette seal | standard blue | standard blue | standard blue |
| Hydropak | standard blue | standard blue | standard blue |
| Support foot for the seeder | standard blue | standard blue | standard blue |
| Tubular roller (mm) Ø 510 | standard blue | standard blue | standard blue |
| Packer roller (mm) Ø 500 | opcja blue | opcja blue | opcja blue |
| Campbell roller (mm) Ø 500 | opcja blue | opcja blue | opcja blue |
| Crosskill roller (mm) Ø 370 | opcja blue | opcja blue | opcja blue |
| Rubber roller (mm) Ø 500 | opcja blue | opcja blue | opcja blue |
| Disc (mm) Ø 560 type c Italian | opcja blue | opcja blue | opcja blue |
| Disc (mm) Ø 560 type p Italian | szczególnie polecane blue | szczególnie polecane blue | szczególnie polecane blue |
| Lighting | polecane blue | polecane blue | polecane blue |
| Hydraulic adjustment of working depth | polecane blue | polecane blue | polecane blue |
| Service package | szczególnie polecane blue | szczególnie polecane blue | szczególnie polecane blue |
Configurator
Configure
Select model:
|
|
560 EUR* |
|
|
1035 EUR* |
|
|
1120 EUR* |
|
|
1550 EUR* |
|
|
715 EUR* |
|
|
530 EUR* |
|
|
230 EUR* |
|
|
415 EUR* |
Your configuration
* * net price
Other products from the line
-

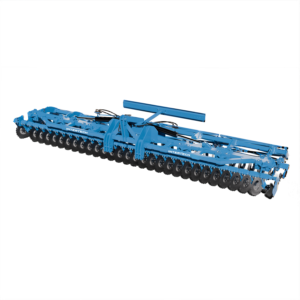

HYDRAULIC DISC HARROW BTH
-

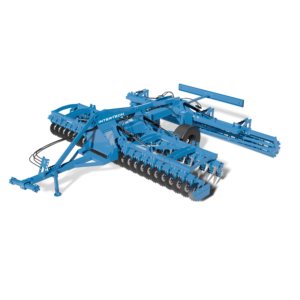

TRAILED HYDRAULIC HARROW
-

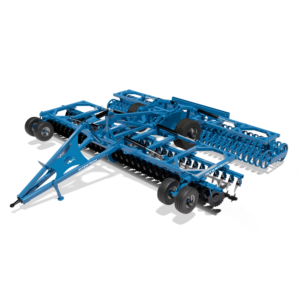

TRAILED HYDRAULIC HARROW IN HD VERSION
-

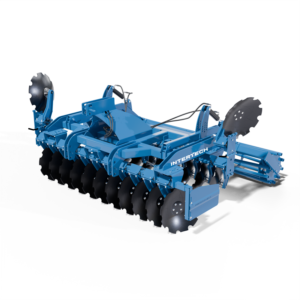

HEAVY DISC HARROW
-

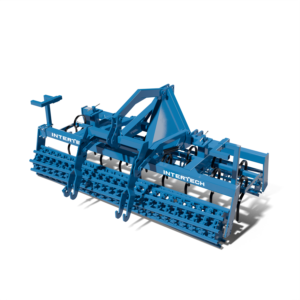

CULTIVATION AND DRILLING HARROW
-

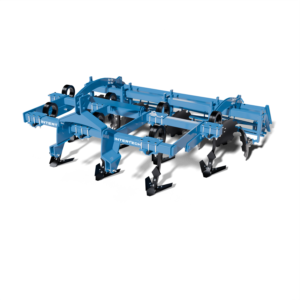

HELICAL SKIMMING CULTIVATOR
-

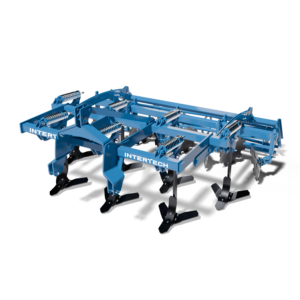

SPRUNG SKIMMING CULTIVATOR
-

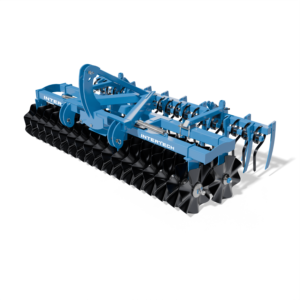

FRONT DISC
-

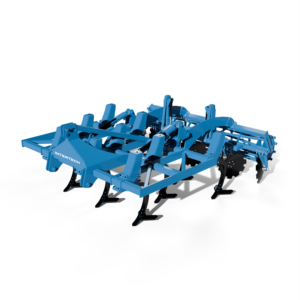

No-Till Cultivator
-

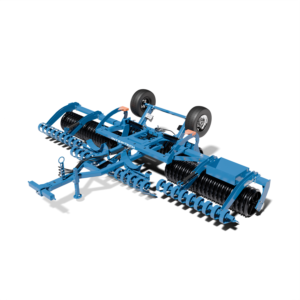

SOWING ROLLER
-

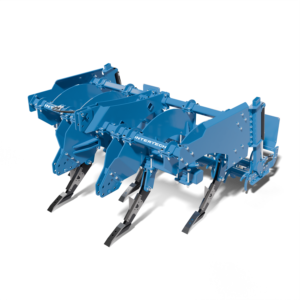

SUBSOILER HD
-

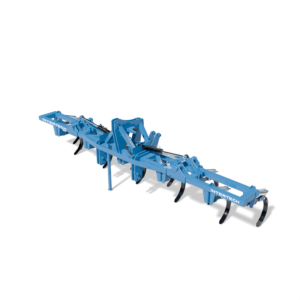

MULTI-FUNCTIONAL CULTIVATOR
-
